SKU: 26800B-723
Description:
The SPZV-50 sets the standard with its expansive zoom range and high-definition 3D imaging, perfect for detailed inspections. Complementing this is the Mighty Cam Eidos, a powerful camera with an integrated HD monitor that simplifies image capture and on-screen measurements without the need for a PC. This system is supported by the sturdy Ergo Stand, designed for stability and flexibility in every analysis. This trio is the epitome of innovation, designed to enhance productivity and precision in any lab or industrial setting.
Available Quantity: 5
At the heart of this system lies Aven's SPZV-50, a true trinocular stereo zoom microscope that boasts a best-in-class zoom ratio and high-definition 3D images across a wide field of view. With a magnification range from 6.7x to 50x, expandable up to 200x with optional lenses, this microscope is designed for versatility and superior optical performance.

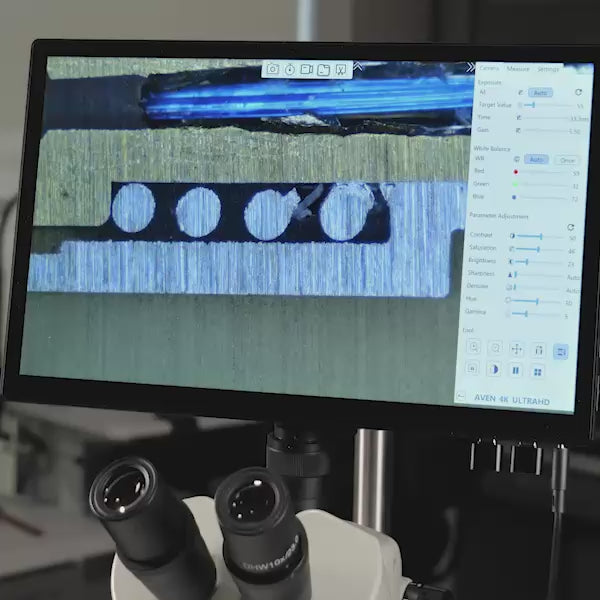

Complementing the SPZV-50 is Aven's Mighty Cam Eidos, an integrated camera and monitor solution that revolutionizes the way you capture and analyze data. This powerful 5-megapixel camera, equipped with an 11.6" HD monitor, allows for high-resolution image and video capture without the need for a PC, streamlining your workflow and enhancing productivity. The live picture can also be displayed on your computer via a USB output using the camera software of your choice (aven does not offer software for the Mighty Cam Eidos).
The system is anchored by Aven's Ergo Stand, which provides a robust and stable platform for detailed examinations. The stand features a 16-inch post and a reversible plate, offering a large working distance and the flexibility to handle various sample sizes and viewing angles. Its sturdy construction ensures reliable performance during critical observations.
Whether you're in the field of quality control, medical research, or educational demonstrations, this microscope system stands as a testament to our commitment to excellence. It offers unparalleled clarity, convenience, and control, empowering you to achieve breakthroughs in your work and research. Discover the difference with our state-of-the-art microscope system, where every detail is crafted with precision and every function is designed with your needs in mind.
Features
- Dual view microscope system: View on the screen or with the microscope eyepieces
- Save images and videos to MicroSD Card
- Built-in computational measurement capabilities with no need for a PC
- Output the live image to an external HDMI monitor, or to your PC via USB connection.
- Large zoom ratio 7.46:1- best zoom ratio in class
- Field of View 34.3mm to 3.6mm (1.35" to 0.14")
- Working distance 108mm (4.25") -the best in class
- 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
- Ergo Stand with 16" post, reversible plate, and slide clips
- The focus mount features adjustable LEDs, as well as course & fine focus knobs
26800B-723 Stereo Zoom Microscope SPZV-50 [6.7x - 50x] With Ergo Post Stand and LED Might Cam Eidos Camera | |
Package Contents: | SPZV-50 Stereo Zoom Microscope 26100-260: Mighty Cam Eidos 26200B-207: LED Ring Light Focus Mount 26800B-575: Ergo Stand |
Magnification | Eyepieces: 6.7x - 50x 11.6" Mighty Cam Eidos Screen: 19x to 143x |
Shipping Weight | 36.1LB |
SPZV-50 Stereo Zoom Microscope | |
Body Type | True Trinocular, 360° rotatable, 45° inclined eyepiece tube & C-mount camera port |
Eyepieces | Two 10x(FN23)eyepieces supplied with microscope body. Optional 15x(FN15) and 20x(FN11.4) available to extend magnification range |
Auxiliary lens | 0.5x, 0.75x, 1.6x and 2x auxiliary lenses available to extended magnification range of microscope |
Working Distance | 108mm without auxiliary lens 240mm with 0.5x auxiliary lens 132mm with 0.75x auxiliary lens 50mm with 1.6x auxiliary lens 41mm with 2x auxiliary lens |
Zoom Ratio | 7.46:1 |
Diopter Adjustment | On both eye tubes: +5.6D-.72D |
Interpupillary Distance | Adjustable from 52 to 75mm |
Optical System | Greenough |
Package Contents | 1ea SPZV True Trinocular Stereo Zoom Microscope Body with Photo tube 2 ea. 10x Eyepieces 2 ea. Rubber Eyeguards 1 ea. Dust Cover 1 ea. Instruction Manual |
Weight | 5lb |
26100-260 Mighty Cam Eidos | |
Hardware Parameters | |
Display Specification | 11.6 inch, 1920 * 1080, IPS Screen |
Imaging Sensor | 1/2.8 inch SONY CMOS |
Real-Time Image Frame Rate | 60fps@1920*1080 |
Photograph | 5 megapixel |
Recording | 60fps@1920*1080 |
Output Interface | HDMI |
Input Interface | 2 USB 2.0 Ports |
Internal Software Parameters | |
Camera parameters | Exposure, White Balance, Gain, Gamma, Brightness, Contrast, Hue, Saturation, Grayscale |
OSD Operation | Mouse |
Storage Function | USB Storage, MicroSD Card |
Measurement | Line Parallel Lines Broken Lines Angle Diameter Circle Radius Circle Three-Point Circle Distance from circle to line Concentric Circles Double Circles Vertical Line Arbitrary Line Polygon Arc Mark Screenshot Table Data Export Calibration Parameter Settings |
Other Function | Flip horizontally, flip vertically, Freeze |
Scale Ruler | 3 Options |
Grid Line | 8 Groups |
Languages | English, French, Italian, German, Japanese, Russian, Simplified Chinese, Traditional Chinese |
Package Content | Mighty Cam Eidos |
Power Supply | |
HDMI to HDMI Mini cable | |
Wireless Mouse | |
16GB MicroSD Card | |
USB-C to USB-A MicroSD Card Reader | |
USB-C to USB-A Adapter for Wireless Mouse Transmitter | |
Mighty Cam Eidos Power Supply HDMI to HDMI Mini cable Wireless Mouse 16GB MicroSD Card USB-C to USB-A MicroSD Card Reader USB-C to USB-A Adapter for Wireless Mouse Transmitter USB-A Wireless Mouse Transmitter |
|
Ring Light LED with Integrated Focus Mount | |
LEDs | 60 |
Lighting Control | Variable |
Light Intensity | 35,000 lux |
LED Color Temperature | 5600K White |
Power Supply | 5W, 100-120V AC 50/60HZ |
Focus Mount Ring Diameter | 74mm |
Mounting Diameter | 26.9mm |
Focus Mechanism | Rack & Pinion with Tension Control |
Focusing Distance | 50mm in vertical direction |
Accepted Bodies | SSZ, SPZ, DSZ and NSW series |
Weight | 2.80lbs |
Package Contents | Integrated LED Ring Light with Focus Mount and Power Supply |
Ergo Microscope Stand 26800B-575 | |
Post Height | 16 inch |
Post Diameter | 25mm |
Base Dimensions | 13 x 12.5 inch |
Weight | 11.8 lb |
Package Contents | 16 inch post, base, secure bolt, reversible plate |
Optical Data
Eyepiece | DHW10X (F.N. 23)Auxiliary Lens | Nil | w/0.5x | w/0.75x | w/1.6x | w/2x |
Magnifications | 6.7x-50x | 3.35x-25x | 5x-37.5x | 10.72x-80x | 13.4x-100x |
Working Dist. | 108mm | 240mm | 132mm | 50mm | 41mm |
Field of View | 34.3-4.6mm | 68.9-9.2mm | 45.7-6.1mm | 21.4-2.8mm | 17.1-2.3mm |
Eyepiece | DHW15X (F.N.15) | |||||
Auxiliary Lens | Nil | w/0.5x | w/0.75x | w/1.6x | w/2x |
Magnifications | 10.05x-75x | 5.02x-37.5x | 7.53x-56.25x | 16.08x-120x | 20.1x-150x |
Working Dist. | 108mm | 240mm | 132mm | 50mm | 41mm |
Field of View | 22.3-3mm | 44.7-6mm | 29.8-4mm | 16-1.8mm | 11.1-1.5mm |
Eyepiece | DHW20X (F.N. 11.4) | |||||
Auxiliary Lens | Nil | w/0.5x | w/0.75x | w/1.6x | w/2x |
Magnifications | 13.4x-100x | 6.7x-50x | 10.05x-75x | 21.44x-160x | 26.8x-200x |
Working Dist. | 108mm | 240mm | 132mm | 50mm | 41mm |
Field of View | 17-2.2mm | 34-4.5mm | 22.6-3mm | 10.6-1.4mm | 8.5-1.1mm |
