Digital Microscope with 360 Viewer, Mighty Cam Eidos on Post Stand with Gooseneck LEDs [13.3x - 94.4x]

SKU: 26700-151-C05-260-570

Description:

Digital Inspection and Measurement System featuring our Detented Micro Lens with a 360 Viewer, Mighty Cam Eidos camera mounted on our heavy-duty post stand, with adjustable LED Lighting.  The Mighty Cam Eidos features a built-in 11.6" HD monitor with integrated measurement software and image capture capabilities. Provides a magnification range of 13.3x - 94.4x.

Note: Working distance will vary depending on if the 3D Viewer is on or off.  In the ON position the working distance is 0.91".  In the OFF position the working distance is 3.0"



Features

  • All-in-one compact digital microscope system
  • 360 Viewer allows users to inspect from all angles by simply rotating the viewer
  • Micro zoom lens with four detented zoom settings, ideal for accurate and repeatable measurements*
  • Mighty Cam Eidos camera with built-in HD monitor
  • HDMI mode- view images on an additional monitor
  • Integrated measurement software - no computer required
  • Save images to MicroSD - no computer required
  • Flexible LED goosenecks can be positioned where needed for optimal illumination
  • Heavy-duty post stand made from all-metal construction
  • 3D viewer can be easily engaged or disengaged by sliding the mechanism in or out

*360 viewer is required to be in the OFF position to perform measurements





$3,491.64

Available Quantity: 5

Quantity:
- +
Guaranteed safe checkout:
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa
Orders ship within 5 to 10 business days.
Hoorey ! This item ships free to the US

360 Viewer

Inspect Parts From Any Angle

No need to move the part

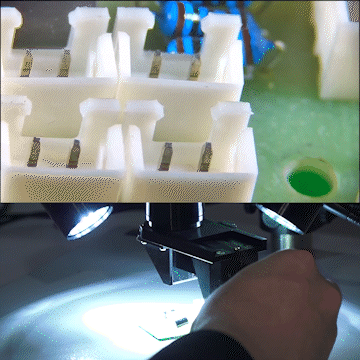

This digital microscope system with the 360 viewer allows users to inspect parts from various angles without having to rotate the part. The viewer features a mirror inclined at a 35 degree angle can be engaged or disengaged.

Precision Engineered Micro Zoom Lens

Micro Zoom Lens with 4 Detented Settings

Ideal for easy, repeatable measurements


The high quality zoom lens has detents set at 0.6x, 1x, 2x and 4x. This allows for calibrating the lens for high accuracy measurement. The lens is parfocaled and will stay in focus when zooming in or out.

Mighty Cam Eidos

Inspect, Measure, and save images to SD card



The Mighty Eidos camera included in this package features a built-in 11.6" HD monitor, with integrated measurement and image capture capabilities - no computer required.

Mighty Cam Eidos




HDMI Mode

View on a larger monitor



The Mighty Cam Eidos features an HDMI output for viewing viewing on an external monitor.  This option can provide a larger image for additional magnification, and can be ideal for presenting live images to a group or audience.

HDMI Mode


Built-in measurement

The included computational imaging software provides users with more functions such as:

  • Calibration editor
  • Radius measurement
  • 2 point circle
  • 3 point circle
  • Crosshair
  • Line measurement tool
  • Center distance
  • Concentric circle tool
  • Annotation tool
  • Screen shot tool

Measurement


Monitor Tilt



The monitor is can be tilted to the ideal angle for optimal viewing.

Monitor Tilt


Heavy Duty Post Stand

Heavy-Duty Post Stand

Flexible gooseneck LEDs with intensity controls

The included post stand is made from heavy metal construction, designed to be compact and durable.  The base measures 11" x 13", with a 16" post.

The LED goosenecks can be positioned where needed for optimal illumination, a particularly useful feature when reduced glare is crucial.  Includes a brightness control box to choose the required brightness intensity.




  • 0.6x to 4x zoom magnification
  • Detented Lens for High Accuracy Measurement
  • 360 viewing with included attachment
  • Heavy-duty post stand with adjustable LEDs
  • All-in-one, compact system
  • 1080p Full HD Imaging at 60 FPS
  • HDMI Output for additional monitor viewing
  • Built-in measurement software - No PC required
  • Enhances productivity - eliminates eye strain and body fatigue
  • 11.6" built-in HD monitor
  • Save high resolution image/video files directly to MicroSD card
  • 1080p Full HD Output
  • Monitor can be tilted to the optimal viewing angle
  • 3D viewer can be easily engaged or disengaged by sliding the mechanism in or out
Digital Microscope with 360 Viewer, Mighty Cam Eidos on Post Stand with Gooseneck LEDs [13.3x - 94.4x]
System Contents
  • 26100-260: Mighty Cam Eidos
  • 26700-170: 360 Viewer
  • 26700-151-C05: Micro Lens + 0.5x Coupler
  • 26700-151AP: Lens Adapter Plate
  • 26800B-570: Heavy Duty Post Stand
  • 26800B-517: Focus Mount
  • 26200B-224: Flexible Gooseneck LEDs with Brightness Control Box


  360 Viewer ON Position 360 Viewer OFF position
Magnification (based on 11.6" HD Monitor) 13.3x - 94.4x 13.3x - 94.4x
Working Distance 0.91 Inches (23mm) 3 Inches (76.2mm)





Eidos Camera Display Parameters
Hardware Parameters Display Specification 11.6 inch, 1920 * 1080, IPS Screen
Imaging Sensor 1/2.8 inch SONY CMOS
Real-Time Image Frame Rate 60fps@1920*1080
Photograph 5 megapixel
Recording 60fps@1920*1080
Output Interface HDMI
Input Interface 2 USB 2.0 Ports
Internal Software Parameters Camera parameters Exposure, White Balance, Gain, Gamma, Brightness, Contrast, Hue, Saturation, Grayscale
OSD Operation Mouse
Storage Function USB Storage, MicroSD Card
Measurement Line
Parallel
Lines
Broken Lines
Angle
Diameter
Circle
Radius
Circle
Three-Point Circle
Distance from circle to line
Concentric Circles
Double Circles
Vertical Line
Arbitrary Line
Polygon
Arc
Mark
Screenshot
Table Data Export
Calibration
Parameter Settings
Other Function Flip horizontally, flip vertically, Freeze
Scale Ruler 3 Options
Grid Line 8 Groups
Languages English, French, Italian, German, Japanese, Russian, Simplified Chinese, Traditional Chinese


26700-151-C05 Micro Lens System
Zoom Settings 0.6x to 4.0x
Zoom Ratio 6.7:1
No. Detents 7
Field of View 6 x 8mm at low mag 0.9 x 1.2mm at high mag
Magnification Optical: 0.6x to 4.0x
Working Distance 0.91" (3D viewer ON position)  |  3" (3D viewer OFF position)
Height 160mm
Diameter 0.38mm
Weight 453g (1 lb)
Package Contents 0.6x to 4.0x Zoom Body with 1X C-Mount Coupler and 1X Objective Lens

The micro lens included in this system includes a 0.5x coupler and the 3D viewer has a 0.75x coupler built in lens




Heavy Duty Post Stand
Base Size 279 x 330 x 12.7mm
Base Weight 3.6Kg (8lbs)
Vertical Post Length 406mm
Vertical Post Diameter 25.5mm
Mounts Accepted SCW-PA/td>
Accepted Bodies SSZ, SPZ, DSZ and NSW series
Package Contents One Base, post, safety clamp and bolt for mounting post to base Hex-Key included





LED Dual Gooseneck Point Light For Post Stand
Post Hole Diameter 22.5 - 32.5mm
Light Source Type LED
Light Source Illuminace 8000LUX
Power Box Panel Meter Display Pointer Palnel Meter / Scale
Power Box Cooling System Heat Sink
Power Box Dimensions 103 x 58 x 32mm
Outbox Power 2.5Wx2
Input Voltage AC 100-240V 50/60Hz
Output Voltage DC 12V
Power Cord Connector Type USA Two Pin
Power Cable Length 1.5m
Parts Certification Power Supply with CE Certification
Material Metal
Color Black
Net Weight 1.01 lb

 360 Viewer ON Position360 Viewer OFF position
Magnification (based on 11.6" HD Monitor)13.3x - 94.4x13.3x - 94.4x
Working Distance0.91 Inches (23mm)3 Inches (76.2mm)


Magnification (based on a 11.6" monitor)
SettingMagnification
0.6x13.6x
1x22.6x
2x45.2x
4x90.4x



Note magnification stays the same whether the Viewer is in off or on position. Only thing that changes is working distance

The micro lens included in this system includes a 0.5x coupler and the 3D viewer has a 0.75x coupler built in lens
